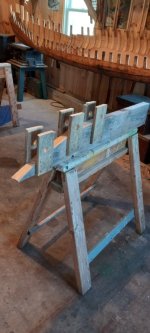

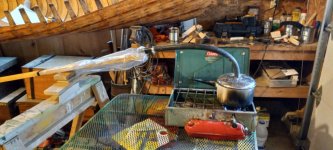

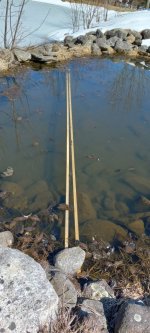

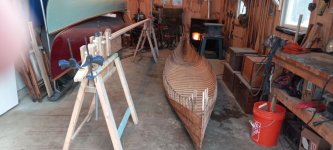

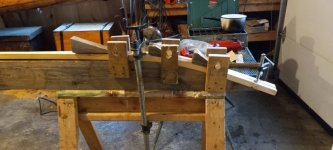

My pond finally cleared of ice so I was able to soak the spruce inwales for a couple of days. I made two jigs for bending and then I steamed them with the bag method.

Robin, some questions so I can understand the bending processes better.

Do you only have to steam the ends of inwales, not the full length, as your bag method pictures seem to show?

Would you ever have to bend the inwales (or outwales) in two directions for a canoe with high, recurved stems—that is, bending both inward and upward?

Can one gunwale bending jig be used for all or most canoes, or would a builder/restorer have to have several bending jigs for different shaped sheerlines?

Do you need a jig to bend steamed ribs, or do you just steam ribs and bend them by hand onto the canoe form for a new build or into the canoe for a restoration?

Joined
Jun 12, 2012
Messages
4,207
Reaction score
2,476
Location
Appleton, Maine
Robin, some questions so I can understand the bending processes better.

Do you only have to steam the ends of inwales, not the full length, as your bag method pictures seem to show?
Yes, just steam the ends that are getting bent
Would you ever have to bend the inwales (or outwales) in two directions for a canoe with high, recurved stems—that is, bending both inward and upward?
I don't think so, I would think you could bend them inwards without much effort. It is possible to set up a jig to bend them in two directions, I just don't remember ever seeing a canoe that would need it.
Can one gunwale bending jig be used for all or most canoes, or would a builder/restorer have to have several bending jigs for different shaped sheerlines?
I would say if you were a professional you would probably have one for each of the popular canoes, and then when you had a rare canoe come in you would build/save the new jig for it just in case. Schuyler Thomson had a few that I saw labeled for different canoes. This canoe I'm working on had the ends repaired without using a jig so my pattern for the jig is probably not historically correct, but close.
Do you need a jig to bend steamed ribs, or do you just steam ribs and bend them by hand onto the canoe form for a new build or into the canoe for a restoration?
No, not for the ribs, but I have seen a jig for "cant ribs", which are two thin and wide ribs at each end of the canoe, one on either side. I don't use a jig for them, but some do.
On a restoration, you bend the new rib on the outside of the canoe, over the next wider rib. If you have 6 broken ribs, like this canoe, it's best to remove and replace only 2 at a time, leaving an old rib to help keep the form of the canoe if possible.


Glenn MacGrady

Administrator
Staff member
Joined
Oct 24, 2012
Messages
3,842
Reaction score
1,953
Location
Connecticut
Thanks, Robin. I've gotten more interested in build and restoration techniques now that I'm more involved with w/c canoes and the WCHA.

Joined
Apr 20, 2022
Messages
155
Reaction score
126
Yes, just steam the ends that are getting bent

I don't think so, I would think you could bend them inwards without much effort. It is possible to set up a jig to bend them in two directions, I just don't remember ever seeing a canoe that would need it.

I would say if you were a professional you would probably have one for each of the popular canoes, and then when you had a rare canoe come in you would build/save the new jig for it just in case. Schuyler Thomson had a few that I saw labeled for different canoes. This canoe I'm working on had the ends repaired without using a jig so my pattern for the jig is probably not historically correct, but close.

No, not for the ribs, but I have seen a jig for "cant ribs", which are two thin and wide ribs at each end of the canoe, one on either side. I don't use a jig for them, but some do.
On a restoration, you bend the new rib on the outside of the canoe, over the next wider rib. If you have 6 broken ribs, like this canoe, it's best to remove and replace only 2 at a time, leaving an old rib to help keep the form of the canoe if possible.
Thank you for the responses… very helpful

Joined
Jun 12, 2012
Messages
4,207
Reaction score
2,476
Location
Appleton, Maine
I was more nervous responding correctly to Glenn's post than bending those inwales, haha,

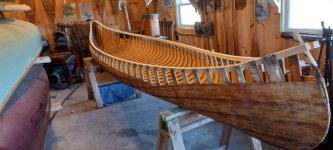

BTW, in my last picture, you can really see the tumblehome in the canoe, a pretty sure sign that the canoe was built on a pre fire Chestnut form. (circa 1922 or before)

Joined
Oct 29, 2019
Messages
499
Reaction score
623
Location
southeast PA
Robin, your mention of tumblehome made me go out to the barn to look at my current Chestnut project. Does the tumblehome in this hull appear similar to yours? The previous owner claimed this canoe is a pre-fire Chestnut Bobs Special, but the depth of the hull (13.5") more closely resembles a Chestnut Ranger than a Bobs (12").



Also, I started thinking about hull measurements in general. I think over time Chestnut canoe identification based only on measurements becomes difficult due to a lack of apparent factory quality control as the company neared closing.

Here's how I measure extreme beam (below the gunwale). I clamp two framing squares together with the tongues just touching the widest part of the hull, then measure the distance between them. In this case, the widest beam is 36 7/16", while the gunwale (plank to plank) width is 35". tempImageBkLKUt.pngtempImage05m3vM.png

Certainly not highly important information here.... just fooling around with projects while it's too cold to paddle!

Joined
Jun 12, 2012
Messages
4,207
Reaction score
2,476
Location
Appleton, Maine
Yes, that's the same tumblehome I have. I would say it's a pre fire. I have 5 other Chestnuts and non of them have any tumblehome. As far as measurements, I gave up trying to figure them out. My Pal is 13" from top of ribs to under the center thwart, or 15" from the plank to the top of the inhales.?

Joined
Feb 1, 2013
Messages
520
Reaction score
238
Location
Ontario
The previous owner claimed this canoe is a pre-fire Chestnut Bobs Special, but the depth of the hull (13.5") more closely resembles a Chestnut Ranger than a Bobs (12").
Patrick,

Was this the canoe that had the heart shape deck with faded outline of a Chestnut decal on it?

If so, here's a little graphic I put together using known samples of a confirmed pre-fire decal (1918) at the Canadian Canoe Museum and the version that appears from the post-fire period to early 60s (this one on a 50's era pleasure class). You'll see a well defined "indent" on the right side that was part of the leafy design in the post-fire period but not found in the pre-fire decal.

P Corry Decal Outline copy.jpg

Joined
Oct 29, 2019
Messages
499
Reaction score
623
Location
southeast PA
Yes, Murat, that deck is from the canoe I mentioned just above. Thanks for your graphic. It's probably the most definitive clue I've seen that helps to date my canoe! I have no reason to doubt that the decks on the canoe in question are not original, so I'm going with post-fire.

The nature of the canoe construction is most interesting to me. It's so lightly built that the first assumption is to call it a Bobs, but the depth doesn't square with the catalog dimensions for a Bobs; dimensionally it's more like a Prospector 15' Ranger, but certainly built much lighter. Maybe a one-off for a discerning customer.... I'm really looking forward to finishing her. I'll bet it will be a true lightweight weighing in the 50# range. The 1950 catalog had a category called the Chestnut 50-lb. Special: first grade finish telegram code was Bobs, second grade code Bantam.

From the 1921 catalog: Chestnut measurements seem to be suspect. Perhaps this is from where some of the confusion originates.
page5image233894960

Joined
Jul 11, 2014
Messages
4,722
Reaction score
1,089
Location
Ontario Canada
Never occurred to me you'd steam bend them onto the outside hull. I saw birch bark canoe ribs soaked in hot water and bent to tight friction fit into the interior, and so assumed all ribs were fit into the interior likewise. I'm following this (and other) wc projects here on CT. Thanks.

Joined
Jun 12, 2012
Messages
4,207
Reaction score
2,476
Location
Appleton, Maine
Never occurred to me you'd steam bend them onto the outside hull. I saw birch bark canoe ribs soaked in hot water and bent to tight friction fit into the interior, and so assumed all ribs were fit into the interior likewise. I'm following this (and other) wc projects here on CT. Thanks.

Yes, every rib is bent over the next biggest rib to where it should be installed. Makes for a tight fit. I have only removed two of the 6 ribs to be replaced, and there is still a rib between where they came out. That helps to preserve the shape of the canoe, no bulges. After installing the first two ribs, I’ll remove two more ribs, install new, then repeat.
